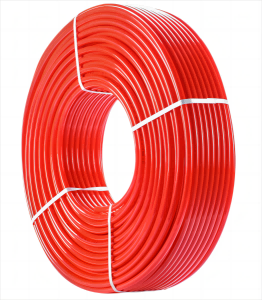

PERT / EVOH Yeeb Nkab 3 Txheej
Huilide PERT-EVOH yeeb nkab yog lub teeb yuag, ultraflexible yeeb nkab uas tuaj yeem siv rau hauv txhua hom dej sov hauv qab cua sov. Peb cov 16mm EVOH pert yeeb nkab yog tsim los rau ISO 9001 cov qauv kom ntseeg tau tias peb qhov kev ua tau zoo & kev ntseeg tau.
Hauj lwm lawm
Huilide PERT-EVOH yeeb nkab yog lub teeb yuag, ultraflexible yeeb nkab uas tuaj yeem siv rau hauv txhua hom dej sov hauv qab cua sov. Peb cov 16mm EVOH pert yeeb nkab yog tsim los rau ISO 9001 cov qauv kom ntseeg tau tias peb qhov kev ua tau zoo & kev ntseeg tau.
PE-RT yeeb nkab muaj 3 txheej uas yog tsim los ntawm cov pa thaiv (EVOH), ib txheej ntawm cov nplaum, thiab ib txheej txheej ntawm pert yeeb nkab.
Cov pa oxygen diffusion barrier encases lub puab txheej ntawm PE-RT yeeb nkab kom tsis txhob nkag ntawm oxygen mus rau hauv lub cua sov system los ntawm cov yeeb nkab. Cov txheej txheej tawv tawv yog tsim los tiv thaiv qhov kev xav tau ntawm qhov chaw ua haujlwm kom ntseeg tau tias cov pa oxygen barrier tseem nyob ruaj khov, uas txo qhov kev pheej hmoo ntawm corrosion hauv cov cua sov.
Cov ntaub ntawv
Cov khoom tseem ceeb: 100% nkauj xwb LG SP980
Xim: Dawb / Liab / Xiav Cov neeg siv khoom
|
CODE |
S SERIES |
SIZE |
|
HDRT101 |
S5 |
16×1.8 |
|
HDRT102 |
S5 |
20×2.0 |
|
HDRT103 |
S5 |
25×2.3 |
|
HDRT104 |
S5 |
32×2.9 |
|
HDRT105 |
S4 |
16×2.0 |
|
HDRT106 |
S4 |
20×2.3 |
|
TXA 107 |
S4 |
25×2.8 |
|
TXA 108 |
S4 |
32×3.6 |
|
HDRT109 |
S3.2 |
16×2.2 |
|
HDXA 110 |
S3.2 |
20×2.8 |
|
TXA 111 |
S3.2 |
25×3.5 |
|
TXA 112 |
S3.2 |
32×4.4 |
Lub cev & Tshuaj
Txuj: ISO 22391
|
Yam khoom |
Kev xav tau |
Lub Sijhawm Xeem |
Ntsuas kub |
Hoop Kev nyuaj siab |
|
Longitudinal Reversion |
Tsawg dua lossis sib npaug li 2 feem pua |
1h (en Tsawg dua lossis sib npaug li 8 hli) |
110 degree |
___ |
|
Hydrostatic Stress Test |
Tsis Bursting Tsis Tog |
22h 165h 1000h |
95 degree 95 degree 95 degree |
3.8Mpa 3.6 Mpa 3.4Mpa |
|
Thermal stability |
Tsis Bursting Tsis Tog |
8760h |
110 degree |
1.9 Mpa |
|
Melt Mass Flow Rate (5kg) |
Max 30 feem pua sib txawv |
10 min |
190 degree |
___ |
Daim ntawv thov
1 Cov kav dej kub thiab dej txias Distribution
2 Radiant cua sov thiab cua txias tshuab (pem teb, phab ntsa, qab nthab
3 Sab nraum zoov daus thiab dej khov yaj
4 Hydronic piping thiab faib (radiators, kiv cua coils) thiab lwm yam
Qhov zoo
1 Corrosion dawb
2 Tshuaj-resistant
3 Qhov hnyav
4 Flexible txav-phooj ywg
5 High throughput ua tsaug rau cov txheej sab hauv du
6 Kev cuam tshuam zoo
