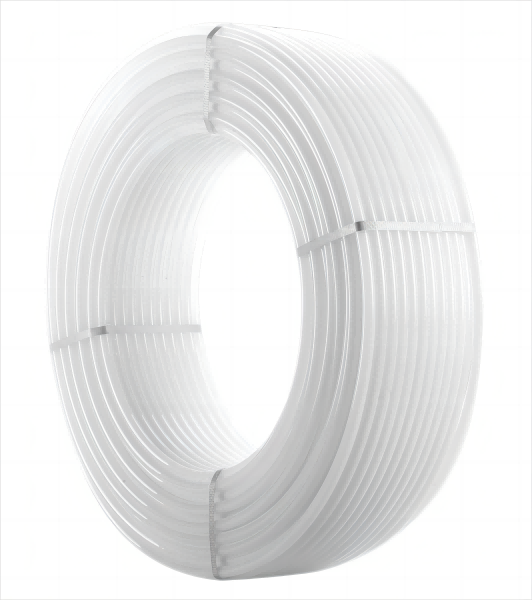

PE-Xa Pipe NSF
Nws muaj nyob rau hauv cov xim dawb, xim liab kom yooj yim txheeb xyuas cov kab dej kub thiab dej txias. HD expansion PEX tubing teev yog hom PEX-A (PEX-a, PEXa). PEX tubing yog siv rau hauv cov dej kub thiab dej txias, PEX tubing tuaj yeem siv rau hauv cov kav dej txuas ntxiv mus txog 140 degree F thaum tswj cov tshuaj chlorine.
Hauj lwm lawm
PE-Xa Pipe NSF
Expansion PEX tubing yog cross-linked, siab ceev polyethylene.
Nws muaj nyob rau hauv cov xim dawb, xim liab kom yooj yim txheeb xyuas cov kab dej kub thiab dej txias. HD expansion PEX tubing teev yog hom PEX-A (PEX-a, PEXa). PEX tubing yog siv rau hauv cov dej kub thiab dej txias, PEX tubing tuaj yeem siv rau hauv cov kav dej txuas ntxiv mus txog 140 degree F thaum tswj cov tshuaj chlorine.
Cov ntaub ntawv
|
Qhov ntom |
0.951 |
g/cm³ |
|
Thermal conductivity |
0.4 |
W/m▪K |
|
VICAT Softening kub |
130-132 |
degree |
|
Qhov kub siab tshaj plaws ntawm kev ua haujlwm |
110 |
degree |
|
Coefficient ntawm linear thermal expansion |
0.15 |
mm/m degree K |
Cov txiaj ntsig
1 Resistant rau cov tshuaj phem thiab ua tau raws li CL5 kev faib tawm ntawm cov tshuaj chlorine
2 Saj zawg zog thiab muaj nyob rau hauv cov coils ntev uas xav tau cov fittings tsawg dua li cov hlab ntsha
3 Lub teeb
4 Smooth sab hauv phab ntsa kom tsis txhob poob siab
5 kev pab cuam lub neej mus txog 50 xyoo
Daim ntawv thov
1 Cov dej kub thiab dej txias

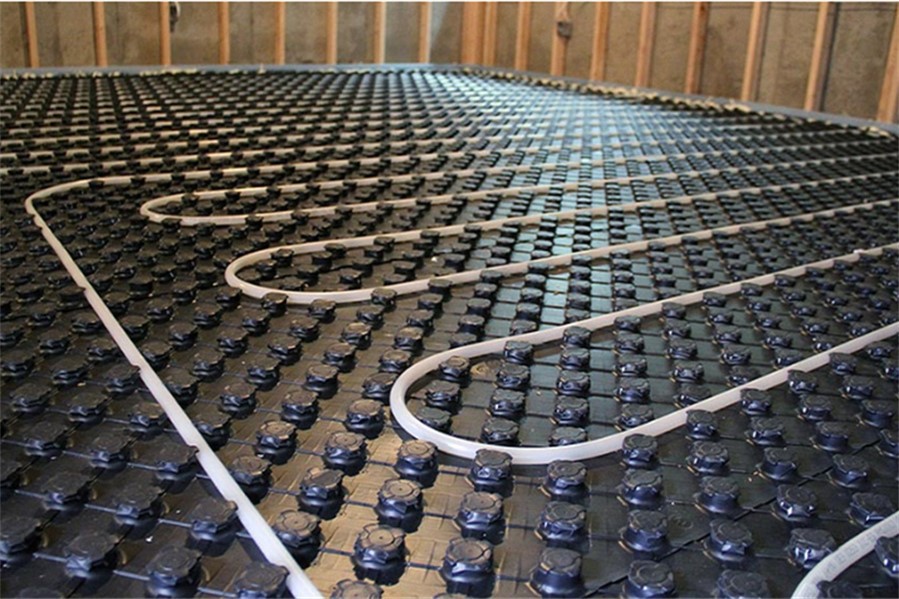

2 Pem teb cua sov system
Feature
Cov khoom tseem ceeb: 100% Virgin LG188 / Lotte 8100GX
Txuj kev tsim khoom: ASTM F876 / F877 (PE-Xa Pipe NSF)
Pob: 100m / 200m / 300m / 500m
Yob ntev tuaj yeem kho raws li qhov xav tau.
|
Nominal Tubing |
Nruab nrab sab nraud |
Tolerances rau nruab nrab txoj kab uas hla |
Tsawg kawg phab ntsa |
Thickness kam rau ua |
Out-of-Roundness |
|||||
|
hauv |
hauv |
mm |
hauv |
mm |
hauv |
mm |
hauv |
mm |
hauv |
mm |
|
1/2 |
0.625 |
15.88 |
±0.004 |
±0.10 |
0.07 |
1.78 |
ntxiv rau 0.010 |
ntxiv rau 0.25 |
0.016 |
0.40 |
|
5/8 |
0.750 |
19.05 |
±0.004 |
±0.10 |
0.083 |
2.12 |
ntxiv rau 0.010 |
ntxiv rau 0.25 |
0.016 |
0.40 |
|
3/4 |
0.875 |
22.22 |
±0.004 |
±0.10 |
0.097 |
2.47 |
ntxiv rau 0.010 |
ntxiv rau 0.25 |
0.016 |
0.40 |
|
1 |
1.125 |
28.58 |
±0.005 |
±0.12 |
0.125 |
3.18 |
ntxiv rau 0.013 |
ntxiv 0.33 |
0.020 |
0.48 |
|
1 1/4 |
1.375 |
34.92 |
±0.005 |
±0.12 |
0.153 |
3.88 |
ntxiv rau 0.015 |
ntxiv 0.38 |
0.020 |
0.48 |
|
1 1/2 |
1.623 |
41.28 |
±0.006 |
±0.16 |
0.181 |
4.59 |
ntxiv rau 0.019 |
ntxiv 0.48 |
0.024 |
0.60 |
|
2 |
2.125 |
53.98 |
±0.006 |
±0.16 |
0.236 |
6.00 |
ntxiv rau 0.024 |
ntxiv 0.61 |
0.030 |
0.76 |
Cim npe nrov: PE-Xa yeeb nkab nsf, Tuam Tshoj PE-Xa yeeb nkab nsf manufacturers, lwm tus neeg, Hoobkas
